Concurrent 10 million connection and Performance Test
Develop an opensource based packet generator for BIGIP load/performance evaluation/trouble-shooting using technology below
DPDK is an user space drivers and libraries for fast packet
processing, it can generates 10Mpps, 10Mcps
mTCP A Highly Scalable User-level TCP Stack for Multicore Systems.
MoonGen to generate raw packet like SYN/RST/ACK/UDP/ICMP flooding
Background:
The Secret to 10 Million Concurrent Connections -The Kernel is the Problem, Not the Solution
Problem:
Simplified packet processing in Linux:
Real packet processing in Linux:Linux network data flow
System calls
Context switching on blocking I/O
Data Copying from kernel to user space
Interrupt handing in kernel
Expense of sendto :
sendto - system call: 96ns sosend_dgram - lock sock_buff, alloc mbuf, copy in: 137ns
udp_output - UDP header setup: 57ns
ip_output - route lookup, ip header setup: 198ns
ether_output - MAC lookup, MAC header setup: 162ns
ixgbe_xmit - device programing: 220ns
Total: 950ns
Solution:
Packet processing with DPDK
Processor affinity (separate cores)
Huge pages( no swap, TLB)
UIO (no copying from kernel)
Polling (no interrupts overhead)
Lockless synchronization(avoid waiting)
Batch packets handling

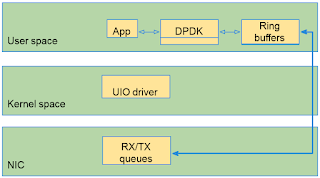

SSE, NUMA awareness UIO for example:
Kernel space (UIO framework) <------>/dev/uioX<------>userspace epoll/mmap<-------->App
Problem:
http://www.ndsl.kaist.edu/~kyoungsoo/papers/mtcp.pdfLimitaions of the Kernel's TCP stack
Lack of connection locality
Shared file descriptor space
Inefficient per-packet processing
System call overhead
Solution:
Batching in packet I/O, TCP processing, user applications ( reduce system call overhead) Connection locality on multicore systems - handling same connection on same core, avoid cache
pollution (solve connection locality)
No descriptor sharing between mTCP thread
mTCP: A Highly Scalable User-level TCP Stack for Multicore
Systems https://github.com/eunyoung14/mtcp
clone of mTCP in ES codeshare http://git.es.f5net.com/index.cgi/codeshare/tree/vli/mtcp
clone addition:
Change apachebench configure script to compile with dpdk support
Ported SSL BIO onto mTCP to enable apachebench to perform SSL test
Add SSL clienthello stress test based on epwget and ssl-dos
Add command line option in epwget and apachebenach to enable source address pool to congest
servers
Increase mTCP SYN BACKLOG to increase concurrent connection
Changed DPDK .config to compile DPDK as combined shared library
Tuned send/receive buffer size in epwget.conf to achieve ~7 million concurrent connection
on Dell Poweredge R710 II 72G MEM, 16 core, Intel NIC 82599ES
mTCP installation
https://github.com/eunyoung14/mtcp has detail installation- DPDK VERSION -
----------------
1. Set up Intel's DPDK driver. Please use our version of DPDK. We have only changed the lib/igb_uio/ submodule. The best
method to compile DPDK package is to use DPDK's tools/setup.sh
script. Please compile your package based on your own hardware
configuration. We tested the mTCP stack on Intel Xeon E5-2690
(x86_64) machine with Intel 82599 Ethernet adapters (10G). We
used the following steps in the setup.sh script for our setup:
- Press [10] to compile the package
- Press [13] to install the driver
- Press [17] to setup 1024 2MB hugepages
- Press [19] to register the Ethernet ports
- Press [31] to quit the tool
- check that DPDK package creates a new directory of compiled
libraries. For x86_64 machines, the new subdirectory should be
*dpdk-2.1.0/x86_64-native-linuxapp-gcc*
- only those devices will work with DPDK drivers that are listed
on this page: http://dpdk.org/doc/nics. Please make sure that your
NIC is compatible before moving on to the next step.
2. Next bring the dpdk-registered interfaces up. Please use the
setup_iface_single_process.sh script file present in dpdk-2.1.0/tools/
directory for this purpose. Please change lines 49-51 to change the IP
address. Under default settings, run the script as:
# ./setup_iface_single_process.sh 3
This sets the IP address of your interfaces as 10.0.x.3.
3. Create soft links for include/ and lib/ directories inside
empty dpdk/ directory:
# cd dpdk/
# ln -s
gcc/lib lib
# ln -s
gcc/include include
4. Setup mtcp library:
# ./configure --with-dpdk-lib=$
## And not dpdk-2.1.0!
## e.g. ./configure --with-dpdk-lib=`echo $PWD`/dpdk
# cd mtcp/src
# make
- check libmtcp.a in mtcp/lib
- check header files in mtcp/include
5. make in util/:
# make
6. make in apps/example:
# make
- check example binary files
7. Check the configurations
- epserver.conf for server-side configuration
- epwget.conf for client-side configuration
- you may write your own configuration file for your application - please see README.config for more details
-- for the latest version, dyanmic ARP learning is *DISABLED*
8. Run the applications!
mTCP App configuration
############### mtcp configuration file ################ The underlying I/O module you want to use. Please
# enable only one out of the two.
io = dpdk
num_cores = 8
num_ip = 64
# Number of memory channels per processor socket (dpdk-only)
num_mem_ch = 4
#------ DPDK ports -------#
#port = dpdk0 dpdk1
port = dpdk0
#port = dpdk0:0
#port = dpdk0:1
# Enable multi-process support (under development)
#multiprocess = 0 master
#multiprocess = 1
# Receive buffer size of sockets
rcvbuf = 512
# Send buffer size of sockets sndbuf = 512
# Maximum concurrency per core
max_concurrency = 1000000
# Maximum number of socket buffers per core
# Set this to small value if there are many idle connections
max_num_buffers = 1000000
# TCO timeout seconds
# (tcp_timeout = -1 can disable the timeout check)
tcp_timeout = 30
mTCP APP call path(epwget):
epwget.c
main()
773 ret = mtcp_init("/etc/mtcp/config/epwget.conf"); //initialize mTCP and i/o modules
799 if (pthread_create(&app_thread[i],
800 NULL, RunWgetMain, (void *)&cores[i])) { //app main thread
}
523 void *
524 RunWgetMain(void *arg)
525 {
526 thread_context_t ctx;
540 mtcp_core_affinitize(core);
541
542 ctx = CreateContext(core); //create app context with mTCP
675 }
mtcp/src/core.c
1099 mctx_t
1100 mtcp_create_context(int cpu)
1101 {
1141 /* Wake up mTCP threads (wake up I/O threads) */
1142 if (current_iomodule_func == &dpdk_module_func) {
1143 #ifndef DISABLE_DPDK
1144 int master;
1145 master = rte_get_master_lcore();
1146 if (master == cpu) {
1147 lcore_config[master].ret = 0;
1148 lcore_config[master].state = FINISHED;
1149 if (pthread_create(&g_thread[cpu],
1150 NULL, MTCPRunThread, (void *)mctx) != 0) {
1151 TRACE_ERROR("pthread_create of mtcp thread failed!\n");
1152 return NULL;
1153 }
1154 } else
1155 rte_eal_remote_launch(MTCPDPDKRunThread, mctx, cpu); 1156 #endif /* !DISABLE_DPDK */
1179 return mctx;
1180 }
1363 int
1364 mtcp_init(char *config_file)
1365 {
1391 ret = LoadConfiguration(config_file); //parse config and initilize DPDK environment
1399 ap = CreateAddressPool(CONFIG.eths[0].ip_addr, 1);
1428 current_iomodule_func->load_module(); //load dpdk i/o module
1429
1430 return 0;
1431 }
mtcp/src/config.c
555 int
556 LoadConfiguration(char *fname)
557 {
604 if (ParseConfiguration(p) < 0)
611 }
453 static int
454 ParseConfiguration(char *line)
455 {
534 } else if (strcmp(p, "port") == 0) {
535 if(strncmp(q, ALL_STRING, sizeof(ALL_STRING)) == 0) {
536 SetInterfaceInfo(q); //DPDK rte_eal_init
537 } else {
538 SetInterfaceInfo(line + strlen(p) + 1);
539 }
540 } else if (strcmp(p, "io") == 0) {
541 AssignIOModule(q); //Assign IO modules like psio/dpdk/netmap
553 }
mtcp/src/io_module.c
66 int
67 SetInterfaceInfo(char* dev_name_list)
68 {
151 } else if (current_iomodule_func == &dpdk_module_func) {
152 #ifndef DISABLE_DPDK
173 sprintf(external_driver, "%s", "/usr/src/mtcp/dpdk/lib/librte_pmd_e1000.so");
//load the specific NIC PMD driver if DPDK compiled as combined shared lib
1
175 /* initialize the rte env first, what a waste of implementation effort! */
176 char *argv[] = {"",
177 "-c", 178 cpumaskbuf,
179 "-n",
180 mem_channels,
181 "-d",
182 external_driver,
183 "--proc-type=auto",
184 ""
185 };
186 const int argc = 8;
188 /*
189 * re-set getopt extern variable optind.
190 * this issue was a bitch to debug
191 * rte_eal_init() internally uses getopt() syscall
192 * mtcp applications that also use an `external' getopt
193 * will cause a violent crash if optind is not reset to zero
194 * prior to calling the func below...
195 * see man getopt(3) for more details
196 */
197 optind = 0;
198
199 /* initialize the dpdk eal env */
200 ret = rte_eal_init(argc, argv); //initialize DPDK environment
286 #endif /* !DISABLE_DPDK */ 287 }
288 return 0;
289 }
mtcp/src/core.c
1012 static void *
1013 MTCPRunThread(void *arg)
1014 {
1022 mtcp_core_affinitize(cpu);
1034 mtcp = ctx->mtcp_manager = InitializeMTCPManager(ctx);
1040 /* assign mtcp context's underlying I/O module */
1041 mtcp->iom = current_iomodule_func;
1043 /* I/O initializing */
1044 mtcp->iom->init_handle(ctx);
1085 /* start the main loop */
1086 RunMainLoop(ctx); //main packet receiving/sending loop
1090 return 0;
1091 }
720 static void
721 RunMainLoop(struct mtcp_thread_context *ctx) 722 {
735 while ((!ctx->done || mtcp->flow_cnt) && !ctx->exit) {
744 for (rx_inf = 0; rx_inf < CONFIG.eths_num; rx_inf++) {
745
746 recv_cnt = mtcp->iom->recv_pkts(ctx, rx_inf); //receive packets
747 STAT_COUNT(mtcp->runstat.rounds_rx_try);
748
749 for (i = 0; i < recv_cnt; i++) {
750 uint16_t len;
751 uint8_t *pktbuf;
752 pktbuf = mtcp->iom->get_rptr(mtcp->ctx, rx_inf, i, &len); //
753 ProcessPacket(mtcp, rx_inf, ts, pktbuf, len); //process receiving packet
754 }
755 }
791 if (mtcp->flow_cnt > 0) {
792 /* hadnle stream queues */
793 HandleApplicationCalls(mtcp, ts);
794 }
795
796 WritePacketsToChunks(mtcp, ts);
797
798 /* send packets from write buffer */ 799 /* send until tx is available */
800 for (tx_inf = 0; tx_inf < CONFIG.eths_num; tx_inf++) {
801 mtcp->iom->send_pkts(ctx, tx_inf); //send packets
802 }
830 }
MoonGen: fully scriptable high-speed packet generator built on DPDK and LuaJIT.
https://github.com/emmericp/MoonGenDesign
Userscript Master
Userscript slave
clone of MoonGen in ES codeshare http://git.es.f5net.com/index.cgi/codeshare/tree/vli/MoonGen
improved tcp syn flooding with random src ip and src port
added DNS flooding script to test Victoria2 DNS DDOS Hardware protection
added icmp echo flooding
MoonGen Installation:
1. Install the dependencies (see below)2. git submodule update --init
3. ./build.sh
4. ./setup-hugetlbfs.sh
5. Run MoonGen from the build directory
How to Run MoonGen script:
command syntax: build/MoonGen examples/
#build/MoonGen examples/dns-flood-victoria.lua 0 10.0.0.1 16000000 10000
Hardware SPEC:
Dell Poweredge R710 72G MEM, 16 core, Intel NIC 82599DUT: Victoria B2250 Intel(R) Xeon(R) CPU E5-2658 v2 @ 2.40GHz 20 cores 64G MEM
Dell PowerEdge R210 II (used $300) 8 core, 32G MEM Intel 1G NIC I350
DUT: BIGIP KVM VE CPU: QEMU Virtual CPU version (cpu64-rhel6) 4 cores 16G MEM
Load Test Example
1, DNS flooding without HW acceleration
#build/MoonGen examples/dns-flood-victoria.lua 0 10.0.0.1 16000000 10000Device: id=0] Sent 13710082176 packets, current rate 4.51 Mpps, 3246.01 MBit/s, 3967.35 MBit/s
wire rate.
[Device: id=0] Sent 13714591360 packets, current rate 4.51 Mpps, 3246.53 MBit/s, 3967.98 MBit/s
wire rate.
[Device: id=0] Sent 13719099520 packets, current rate 4.51 Mpps, 3245.79 MBit/s, 3967.08 MBit/s
wire rate.
top - 12:07:02 up 1 day, 20:38, 1 user, load average: 5.22, 7.46, 9.27
Tasks: 777 total, 19 running, 758 sleeping, 0 stopped, 0 zombie
Cpu(s): 50.6%us, 40.2%sy, 0.0%ni, 9.2%id, 0.0%wa, 0.0%hi, 0.0%si, 0.0%st
Mem: 66080376k total, 65722732k used, 357644k free, 108700k buffers
Swap: 5242872k total, 0k used, 5242872k free, 4048612k cached
PID USER PR NI VIRT RES SHR S %CPU %MEM TIME+ COMMAND
17859 root 1 -19 57.9g 145m 123m R 100.8 0.2 56:44.33 tmm.0 -T 10 --tmid
17741 root 1 -19 57.9g 145m 123m R 100.5 0.2 58:08.51 tmm.0 -T 10 --tmid
17853 root 1 -19 57.9g 145m 123m R 100.5 0.2 56:46.73 tmm.0 -T 10 --tmid
17854 root 1 -19 57.9g 145m 123m R 100.5 0.2 56:46.97 tmm.0 -T 10 --tmid
17855 root 1 -19 57.9g 145m 123m R 100.5 0.2 56:46.06 tmm.0 -T 10 --tmid
17856 root 1 -19 57.9g 145m 123m R 100.5 0.2 56:37.67 tmm.0 -T 10 --tmid 17857 root 1 -19 57.9g 145m 123m R 100.5 0.2 56:45.54 tmm.0 -T 10 --tmid
17858 root 1 -19 57.9g 145m 123m R 100.5 0.2 56:45.70 tmm.0 -T 10 --tmid
17860 root 1 -19 57.9g 145m 123m R 100.5 0.2 56:45.65 tmm.0 -T 10 --tmid
17852 root 1 -19 57.9g 145m 123m R 100.2 0.2 56:50.91 tmm.0 -T 10 --tmid
20110 root RT 0 0 0 0 S 80.6 0.0 0:27.55 [enforcer/11]
20111 root RT 0 0 0 0 R 80.6 0.0 0:27.56 [enforcer/15]
20116 root RT 0 0 0 0 R 80.6 0.0 0:27.50 [enforcer/13]
20108 root RT 0 0 0 0 R 80.2 0.0 0:27.55 [enforcer/19]
20109 root RT 0 0 0 0 R 80.2 0.0 0:27.57 [enforcer/17]
20112 root RT 0 0 0 0 S 80.2 0.0 0:27.55 [enforcer/5]
20113 root RT 0 0 0 0 R 80.2 0.0 0:27.52 [enforcer/1]
------------------------------------------------------------------
Ltm::Virtual Server: vs_dns_10g
------------------------------------------------------------------
Status
Availability : unknown
State : enabled
Reason : The children pool member(s) either don't have service check
CMP : enabled
CMP Mode : all-cpus
Destination : 10.3.3.249:53
PVA Acceleration : none
Traffic ClientSide Ephemeral General
Bits In 11.5G 0 - Bits Out 16.7G 0 -
Packets In 20.0M 0 -
Packets Out 20.0M 0 -
Current Connections 27.1M 0 -
Maximum Connections 27.1M 0 -
Total Connections 28.8M 0 -
2, DNS flooding with HW acceleration
#build/MoonGen examples/dns-flood-victoria.lua 0 10.0.0.1 16000000 10000Device: id=0] Sent 13710082176 packets, current rate 4.51 Mpps, 3246.01 MBit/s, 3967.35 MBit/s
wire rate.
[Device: id=0] Sent 13714591360 packets, current rate 4.51 Mpps, 3246.53 MBit/s, 3967.98 MBit/s
wire rate.
[Device: id=0] Sent 13719099520 packets, current rate 4.51 Mpps, 3245.79 MBit/s, 3967.08 MBit/s
wire rate.
https://docs.f5net.com/display/PDDESIGN/DNS+DDoS+HW+Acceleration+-+Validation
sys fpga firmware-config {
type l7-intelligent-fpga
}
ltm profile dns /Common/dns_fpga {
app-service none
enable-hardware-query-validation yes
enable-hardware-response-cache yes
}
ltm virtual /Common/vs_dns_10g {
destination /Common/10.3.3.249:53
ip-protocol udp
mask 255.255.255.255 profiles {
/Common/dns_fpga { }
/Common/udp_immediate { }
}
rules {
/Common/dns_responder
}
source 0.0.0.0/0
translate-address enabled
translate-port enabled
}
top - 14:51:05 up 3:30, 1 user, load average: 0.12, 0.05, 0.01
Tasks: 771 total, 1 running, 770 sleeping, 0 stopped, 0 zombie
Cpu(s): 4.2%us, 0.5%sy, 0.0%ni, 95.2%id, 0.0%wa, 0.1%hi, 0.0%si, 0.0%st
Mem: 66080272k total, 63094488k used, 2985784k free, 61152k buffers
Swap: 5242876k total, 0k used, 5242876k free, 1352852k cached
PID USER PR NI VIRT RES SHR S %CPU %MEM TIME+ COMMAND
6428 root 1 -19 58.4g 151m 122m S 12.6 0.2 3:19.62 tmm.0
6435 root 1 -19 58.4g 151m 122m S 11.3 0.2 2:42.67 tmm.4
6432 root 1 -19 58.4g 151m 122m S 10.9 0.2 2:44.57 tmm.1
6433 root 1 -19 58.4g 151m 122m S 10.9 0.2 2:42.78 tmm.2
6434 root 1 -19 58.4g 151m 122m S 10.9 0.2 2:40.69 tmm.3
6436 root 1 -19 58.4g 151m 122m S 10.9 0.2 2:41.53 tmm.5
6437 root 1 -19 58.4g 151m 122m S 10.9 0.2 2:42.68 tmm.6 6438 root 1 -19 58.4g 151m 122m S 10.9 0.2 2:40.92 tmm.7
6439 root 1 -19 58.4g 151m 122m S 10.9 0.2 2:41.87 tmm.8
6440 root 1 -19 58.4g 151m 122m S 10.6 0.2 2:41.49 tmm.9
28351 root -91 0 97592 81m 31m S 2.0 0.1 7:00.29 bcmINTR
28589 root 20 0 97592 81m 31m S 2.0 0.1 5:43.36 bcmCNTR.0
profile_dns_stat
name vs_name queries drops hw_malformed hw_inspected hw_cache_lookups hw_cache_responses
---------------- ------------------ ------- ----- ------------ ------------ ---------------- --------------------------------------------------------------------------------------------------
/Common/dns_fpga /Common/vs_dns_10g 6981 0 0 29727032 297 26590 29720435
3, SYN flooding without hardware acceleration
#build/MoonGen examples/l3-tcp-syn-flood.lua 0 10.0.0.1 16000000 10000
[Device: id=0] Sent 7061632 packets, current rate 7.06 Mpps, 3615.47 MBit/s, 4745.31 MBit/s wirerate.
ltm profile fastl4 /Common/fl4_fpga {
app-service none
defaults-from /Common/fastL4
hardware-syn-cookie disabled
pva-offload-dynamic disabled
software-syn-cookie enabled
}
top - 10:53:51 up 42 min, 1 user, load average: 0.24, 0.23, 0.65
Tasks: 769 total, 10 running, 759 sleeping, 0 stopped, 0 zombie Cpu(s): 35.4%us, 1.7%sy, 0.1%ni, 62.9%id, 0.0%wa, 0.0%hi, 0.0%si, 0.0%st
Mem: 66080376k total, 62740700k used, 3339676k free, 45784k buffers
Swap: 5242872k total, 0k used, 5242872k free, 1199508k cached
PID USER PR NI VIRT RES SHR S %CPU %MEM TIME+ COMMAND
19290 root 1 -19 57.9g 145m 123m R 71.5 0.2 0:14.38 tmm.0 -T 10 --tmid
CPU
19291 root 1 -19 57.9g 145m 123m R 70.2 0.2 0:14.53 tmm.0 -T 10 --tmid
19293 root 1 -19 57.9g 145m 123m S 70.2 0.2 0:14.37 tmm.0 -T 10 --tmid
19267 root 1 -19 57.9g 145m 123m R 69.8 0.2 0:30.32 tmm.0 -T 10 --tmid
19292 root 1 -19 57.9g 145m 123m R 69.8 0.2 0:14.38 tmm.0 -T 10 --tmid
19298 root 1 -19 57.9g 145m 123m R 69.8 0.2 0:14.72 tmm.0 -T 10 --tmid
19295 root 1 -19 57.9g 145m 123m R 69.5 0.2 0:14.73 tmm.0 -T 10 --tmid
19296 root 1 -19 57.9g 145m 123m R 69.5 0.2 0:14.03 tmm.0 -T 10 --tmid
19297 root 1 -19 57.9g 145m 123m R 69.2 0.2 0:14.14 tmm.0 -T 10 --tmid
19294 root 1 -19 57.9g 145m 123m R 65.2 0.2 0:13.31 tmm.0 -T 10 --tmid
4 SYN flooding with HW acceleration
#build/MoonGen examples/l3-tcp-syn-flood.lua 0 10.0.0.1 16000000 10000
[Device: id=0] Sent 7061632 packets, current rate 7.06 Mpps, 3615.47 MBit/s, 4745.31 MBit/s wire rate.ltm profile fastl4 /Common/fl4_fpga {
app-service none
defaults-from /Common/fastL4
hardware-syn-cookie enabled
pva-offload-dynamic enabled
software-syn-cookie enabled
}
top - 10:50:08 up 38 min, 1 user, load average: 0.06, 0.36, 0.81
Tasks: 769 total, 1 running, 768 sleeping, 0 stopped, 0 zombie
Cpu(s): 0.8%us, 0.2%sy, 0.0%ni, 98.5%id, 0.5%wa, 0.0%hi, 0.0%si, 0.0%st
Mem: 66080376k total, 62740552k used, 3339824k free, 45324k buffers
Swap: 5242872k total, 0k used, 5242872k free, 1199492k cached
PID USER PR NI VIRT RES SHR S %CPU %MEM TIME+ COMMAND
19267 root 1 -19 57.9g 145m 123m S 3.6 0.2 0:11.87 tmm
19293 root 1 -19 57.9g 145m 123m S 1.3 0.2 0:01.72 tmm
19296 root 1 -19 57.9g 145m 123m S 1.3 0.2 0:01.36 tmm
19297 root 1 -19 57.9g 145m 123m S 1.3 0.2 0:01.37 tmm
19290 root 1 -19 57.9g 145m 123m S 1.0 0.2 0:01.38 tmm
19292 root 1 -19 57.9g 145m 123m S 1.0 0.2 0:01.73 tmm
19294 root 1 -19 57.9g 145m 123m S 1.0 0.2 0:01.35 tmm
19295 root 1 -19 57.9g 145m 123m S 1.0 0.2 0:02.12 tmm
19298 root 1 -19 57.9g 145m 123m S 1.0 0.2 0:02.11 tmm
19291 root 1 -19 57.9g 145m 123m S 0.7 0.2 0:01.73 tmm
5, 10M concurrent HTTP connection
#epwget 10.3.3.249/ 160000000 -N 16 –c 10000000
[CPU 0] dpdk0 flows: 625000, RX: 96382(pps) (err: 0), 0.10(Gbps), TX: 413888(pps), 0.64(Gbps)[CPU 1] dpdk0 flows: 625000, RX: 101025(pps) (err: 0), 0.10(Gbps), TX: 398592(pps), 0.61(Gbps)
[CPU 2] dpdk0 flows: 625000, RX: 106882(pps) (err: 0), 0.11(Gbps), TX: 418432(pps), 0.64(Gbps)
[CPU 3] dpdk0 flows: 625000, RX: 101497(pps) (err: 0), 0.10(Gbps), TX: 405952(pps), 0.62(Gbps)
[CPU 4] dpdk0 flows: 625000, RX: 107375(pps) (err: 0), 0.11(Gbps), TX: 427008(pps), 0.66(Gbps) [CPU 5] dpdk0 flows: 625000, RX: 96012(pps) (err: 0), 0.10(Gbps), TX: 404352(pps), 0.62(Gbps)
[CPU 6] dpdk0 flows: 625000, RX: 100834(pps) (err: 0), 0.10(Gbps), TX: 405504(pps), 0.62(Gbps)
[CPU 7] dpdk0 flows: 625000, RX: 102572(pps) (err: 0), 0.11(Gbps), TX: 401024(pps), 0.62(Gbps)
[CPU 8] dpdk0 flows: 635366, RX: 111319(pps) (err: 0), 0.12(Gbps), TX: 410880(pps), 0.63(Gbps)
[CPU 9] dpdk0 flows: 625000, RX: 102179(pps) (err: 0), 0.11(Gbps), TX: 391104(pps), 0.60(Gbps)
[CPU10] dpdk0 flows: 625000, RX: 98014(pps) (err: 0), 0.10(Gbps), TX: 408320(pps), 0.63(Gbps)
[CPU11] dpdk0 flows: 625000, RX: 102712(pps) (err: 0), 0.11(Gbps), TX: 398976(pps), 0.61(Gbps)
[CPU12] dpdk0 flows: 625000, RX: 105891(pps) (err: 0), 0.11(Gbps), TX: 415616(pps), 0.64(Gbps)
[CPU13] dpdk0 flows: 625000, RX: 97728(pps) (err: 0), 0.10(Gbps), TX: 390592(pps), 0.60(Gbps)
[CPU14] dpdk0 flows: 625001, RX: 100570(pps) (err: 0), 0.10(Gbps), TX: 407872(pps), 0.63(Gbps)
[CPU15] dpdk0 flows: 625000, RX: 103412(pps) (err: 0), 0.11(Gbps), TX: 391296(pps), 0.60(Gbps)
[ ALL ] dpdk0 flows: 10010366, RX: 1634404(pps) (err: 0), 1.69(Gbps), TX: 6489408(pps), 9.96(Gbps)
top - 15:25:26 up 23:57, 1 user, load average: 0.16, 0.33, 0.43
Tasks: 778 total, 17 running, 761 sleeping, 0 stopped, 0 zombie
Cpu(s): 45.1%us, 30.6%sy, 0.0%ni, 24.3%id, 0.0%wa, 0.0%hi, 0.0%si, 0.0%st
Mem: 66080376k total, 62855960k used, 3224416k free, 136316k buffers
Swap: 5242872k total, 0k used, 5242872k free, 1182216k cached
PID USER PR NI VIRT RES SHR S %CPU %MEM TIME+ COMMAND
17283 root 1 -19 57.9g 145m 123m R 94.1 0.2 1322:36 tmm.0 -T 10 --tmid
17286 root 1 -19 57.9g 145m 123m R 94.1 0.2 1322:37 tmm.0 -T 10 --tmid
17281 root 1 -19 57.9g 145m 123m R 93.8 0.2 1322:39 tmm.0 -T 10 --tmid
17284 root 1 -19 57.9g 145m 123m R 93.8 0.2 1322:37 tmm.0 -T 10 --tmid
17282 root 1 -19 57.9g 145m 123m R 93.4 0.2 1322:37 tmm.0 -T 10 --tmid
17287 root 1 -19 57.9g 145m 123m R 93.4 0.2 1322:37 tmm.0 -T 10 --tmid
17289 root 1 -19 57.9g 145m 123m R 93.4 0.2 1322:36 tmm.0 -T 10 --tmid
17043 root 1 -19 57.9g 145m 123m R 92.8 0.2 1325:48 tmm.0 -T 10 --tmid
17285 root 1 -19 57.9g 145m 123m R 92.1 0.2 1322:37 tmm.0 -T 10 --tmid
31507 root RT 0 0 0 0 R 32.0 0.0 0:00.97 [enforcer/19]
31508 root RT 0 0 0 0 R 32.0 0.0 0:00.97 [enforcer/13]
31509 root RT 0 0 0 0 R 32.0 0.0 0:00.97 [enforcer/15]
31510 root RT 0 0 0 0 S 31.7 0.0 0:00.96 [enforcer/9]
31511 root RT 0 0 0 0 S 31.7 0.0 0:00.96 [enforcer/7]
31512 root RT 0 0 0 0 R 31.4 0.0 0:00.95 [enforcer/3]
31515 root RT 0 0 0 0 S 16.8 0.0 0:00.51 [enforcer/1]
[root@localhost:/S1-green-P:Active:Standalone] config # tail -f /var/log/ltm
Nov 4 15:25:29 slot1/bigip1 warning tmm7[17043]: 011e0003:4: Aggressive mode sweeper:
/Common/default-eviction-policy (70000000002d6) (global memory) 9864 Connections killed
Nov 4 15:25:29 slot1/bigip1 warning tmm7[17043]: 011e0002:4:
sweeper_policy_bind_deactivation_update: Aggressive mode /Common/default-eviction-policy
deactivated (70000000002d6) (global memory). (12793204/15051776 pages)
Nov 4 15:25:29 slot1/bigip1 warning tmm6[17043]: 011e0003:4: Aggressive mode sweeper:
/Common/default-eviction-policy (60000000002d2) (global memory) 10122 Connections killed
Nov 4 15:25:29 slot1/bigip1 warning tmm6[17043]: 011e0002:4:
sweeper_policy_bind_deactivation_update: Aggressive mode /Common/default-eviction-policy
deactivated (60000000002d2) (global memory). (12792703/15051776 pages)
Nov 4 15:25:29 slot1/bigip1 warning tmm3[17043]: 011e0003:4: Aggressive mode sweeper:
/Common/default-eviction-policy (30000000002de) (global memory) 10877 Connections killed
Nov 4 15:25:29 slot1/bigip1 warning tmm3[17043]: 011e0002:4:
sweeper_policy_bind_deactivation_update: Aggressive mode /Common/default-eviction-policy
deactivated (30000000002de) (global memory). (12787088/15051776 pages)
Nov 4 15:25:29 slot1/bigip1 warning tmm4[17043]: 011e0003:4: Aggressive mode sweeper:
/Common/default-eviction-policy (40000000002c2) (global memory) 10306 Connections killed Nov 4 15:25:29 slot1/bigip1 warning tmm4[17043]: 011e0002:4:
sweeper_policy_bind_deactivation_update: Aggressive mode /Common/default-eviction-policy
deactivated (40000000002c2) (global memory). (12787088/15051776 pages)
Every 1.0s: tmsh show ltm virtual vs_http_10g Wed Nov 4 15:27:15 2015
Availability : unknown
State : enabled
Reason : The children pool member(s) either don't have service check
ing enabled, or service check results are not available yet
CMP : enabled
CMP Mode : all-cpus
Destination : 10.3.3.249:80
PVA Acceleration : none
Traffic ClientSide Ephemeral General
Bits In 329.8G 0 -
Bits Out 90.4G 0 -
Packets In 287.6M 0 -
Packets Out 150.2M 0 -
Current Connections 6.1M 0 -
Maximum Connections 6.7M 0 -
Total Connections 39.8M 0 -
mTCP perf top output ~70% cycles in Userspace
Samples: 1M of event 'cycles', Event count (approx.): 4419064285588.25% epwget [.] SendTCPPacket
7.93% [kernel] [k] _raw_spin_lock 7.16% epwget [.] GetRSSCPUCore
7.15% epwget [.] IPOutput
4.26% libc-2.19.so [.] memset
4.10% epwget [.] ixgbe_xmit_pkts
3.62% [kernel] [k] clear_page_c
3.26% epwget [.] WriteTCPControlList
3.24% [vdso] [.] 0x0000000000000cf9
2.95% epwget [.] AddtoControlList
2.70% epwget [.] MTCPRunThread
2.66% epwget [.] HandleRTO
2.51% epwget [.] CheckRtmTimeout
2.10% libpthread-2.19.so [.] pthread_mutex_unlock
1.83% epwget [.] dpdk_send_pkts
1.68% epwget [.] HTInsert
1.65% epwget [.] CreateTCPStream
1.42% epwget [.] MPAllocateChunk
1.29% epwget [.] TCPCalcChecksum
1.24% epwget [.] dpdk_recv_pkts
1.20% epwget [.] mtcp_getsockopt
1.12% epwget [.] rx_recv_pkts
6, SSL DDOS test using mTCP
top - 09:10:21 up 22:58, 1 user, load average: 10.45, 4.43, 1.67
Tasks: 782 total, 19 running, 763 sleeping, 0 stopped, 0 zombie
Cpu(s): 50.6%us, 40.1%sy, 0.1%ni, 9.1%id, 0.0%wa, 0.0%hi, 0.0%si, 0.0%st
Mem: 66080376k total, 62923192k used, 3157184k free, 138624k buffers
Swap: 5242872k total, 0k used, 5242872k free, 1259132k cached
PID USER PR NI VIRT RES SHR S %CPU %MEM TIME+ COMMAND
21480 root 1 -19 57.9g 145m 123m R 100.0 0.2 81:24.41 tmm
21503 root 1 -19 57.9g 145m 123m R 100.0 0.2 48:05.30 tmm
21504 root 1 -19 57.9g 145m 123m R 100.0 0.2 47:23.12 tmm
21505 root 1 -19 57.9g 145m 123m R 100.0 0.2 47:06.70 tmm
21506 root 1 -19 57.9g 145m 123m R 100.0 0.2 46:55.21 tmm
21507 root 1 -19 57.9g 145m 123m R 100.0 0.2 46:12.27 tmm
21508 root 1 -19 57.9g 145m 123m R 100.0 0.2 46:56.27 tmm
21509 root 1 -19 57.9g 145m 123m R 100.0 0.2 47:01.32 tmm
21510 root 1 -19 57.9g 145m 123m R 100.0 0.2 46:48.54 tmm
21511 root 1 -19 57.9g 145m 123m R 100.0 0.2 47:06.64 tmm
1670 root RT 0 0 0 0 R 80.2 0.0 2:07.03 enforcer/15
1673 root RT 0 0 0 0 R 80.2 0.0 2:07.03 enforcer/3
1677 root RT 0 0 0 0 R 80.2 0.0 2:07.02 enforcer/13
1671 root RT 0 0 0 0 S 79.9 0.0 2:07.04 enforcer/19
1672 root RT 0 0 0 0 R 79.9 0.0 2:07.02 enforcer/5
7, ApacheBench(ab) mTCP port https test to Victoria blade
#ab -n 16000 -N 16 -c 8000 -L 64 https://10.3.3.249/
--------------------------------------------------------------------------------- Loading mtcp configuration from : /etc/mtcp/config/mtcp.conf
Loading interface setting
EAL: Detected lcore 0 as core 0 on socket 0
................................................. Checking link statusdone
Port 0 Link Up - speed 10000 Mbps - full-duplex
Benchmarking 10.3.3.249 (be patient)
CPU6 connecting to port 443
CPU7 connecting to port 443
CPU8 connecting to port 443
CPU9 connecting to port 443
CPU10 connecting to port 443
CPU5 connecting to port 443
CPU11 connecting to port 443
CPU12 connecting to port 443
CPU13 connecting to port 443
CPU14 connecting to port 443
CPU15 connecting to port 443
CPU4 connecting to port 443
CPU2 connecting to port 443
CPU3 connecting to port 443
CPU1 connecting to port 443
CPU0 connecting to port 443
.......................................
[ ALL ] dpdk0 flows: 5016, RX: 9651(pps) (err: 0), 0.04(Gbps), TX: 14784(pps), 0.02(Gbps)
------------------------------------------------------------------
Ltm::Virtual Server: vs_https
------------------------------------------------------------------
CMP : enabled CMP Mode : all-cpus
Destination : 10.3.3.249:443
PVA Acceleration : none
Traffic ClientSide Ephemeral General
Bits In 49.2G 0 -
Bits Out 71.0G 0 -
Packets In 47.1M 0 -
Packets Out 30.4M 0 -
Current Connections 6.3K 0 -
Maximum Connections 146.0K 0 -
Total Connections 4.3M 0 -
PID USER PR NI VIRT RES SHR S %CPU %MEM TIME+ COMMAND
12864 root 1 -19 57.9g 145m 123m S 5.0 0.2 53:09.44 tmm
13087 root 1 -19 57.9g 145m 123m S 3.0 0.2 14:01.00 tmm
13088 root 1 -19 57.9g 145m 123m S 3.0 0.2 13:32.00 tmm
13091 root 1 -19 57.9g 145m 123m S 3.0 0.2 13:25.59 tmm
13093 root 1 -19 57.9g 145m 123m S 3.0 0.2 13:34.57 tmm
13094 root 1 -19 57.9g 145m 123m S 3.0 0.2 13:46.66 tmm
13086 root 1 -19 57.9g 145m 123m S 2.6 0.2 14:09.38 tmm
13089 root 1 -19 57.9g 145m 123m S 2.6 0.2 13:42.05 tmm
13090 root 1 -19 57.9g 145m 123m S 2.6 0.2 13:47.88 tmm
13092 root 1 -19 57.9g 145m 123m S 2.3 0.2 13:40.11 tmm
8, ApacheBench(ab) mTCP port https test to BIGIP VE(KVM)
#ab -n 1000000 -c 8000 -N 8 -L 64 https://10.9.3.6/
Checking link status......................................donePort 0 Link Up - speed 1000 Mbps - full-duplex
Benchmarking 10.9.3.6 (be patient)
CPU6 connecting to port 443
CPU7 connecting to port 443
CPU5 connecting to port 443
CPU4 connecting to port 443
CPU3 connecting to port 443
CPU2 connecting to port 443
CPU1 connecting to port 443
CPU0 connecting to port 443
[ ALL ] dpdk0 flows: 8000, RX: 13443(pps) (err: 0), 0.01(Gbps), TX: 13953(pps), 0.01(Gbps)
top - 13:12:22 up 4 min, 1 user, load average: 3.34, 2.01, 0.82
Tasks: 395 total, 4 running, 391 sleeping, 0 stopped, 0 zombie
Cpu(s): 13.2%us, 6.5%sy, 0.0%ni, 64.5%id, 15.6%wa, 0.0%hi, 0.1%si, 0.0%st
Mem: 14403128k total, 14060912k used, 342216k free, 22400k buffers
Swap: 1048568k total, 0k used, 1048568k free, 863780k cached
PID USER PR NI VIRT RES SHR S %CPU %MEM TIME+ P COMMAND
13954 root RT 0 12.0g 124m 104m R 92.4 0.9 0:27.17 0 tmm.0 -T 4 --tmid 0 --npus 4 --platform
Z100 -m -s 12088
14125 root RT 0 12.0g 124m 104m R 92.0 0.9 0:13.28 1 tmm.0 -T 4 --tmid 0 --npus 4 --platform
Z100 -m -s 12088
14126 root RT 0 12.0g 124m 104m S 92.0 0.9 0:12.36 2 tmm.0 -T 4 --tmid 0 --npus 4 --platform
Z100 -m -s 12088
14127 root RT 0 12.0g 124m 104m S 92.0 0.9 0:13.15 3 tmm.0 -T 4 --tmid 0 --npus 4 --platform
Z100 -m -s 12088 ------------------------------------------------------------------
Ltm::Virtual Server: vs_https
------------------------------------------------------------------
Status
Traffic ClientSide Ephemeral General
Bits In 428.8M 0 -
Bits Out 786.2M 0 -
Packets In 505.9K 0 -
Packets Out 423.1K 0 -
Current Connections 9.4K 0 -
Maximum Connections 12.9K 0 -
9 Generate TCP/HTTP connection with random src MAC
http://sourceforge.net/p/curl-loader/mailman/message/33614941/
10 ICMP ping flooding to BIGIP VE
build/MoonGen examples/icmp-flood.lua 0 10.0.0.1 16000000 10000
top - 12:10:54 up 1:55, 1 user, load average: 0.24, 0.06, 0.02
Tasks: 381 total, 2 running, 379 sleeping, 0 stopped, 0 zombie
Cpu0 : 16.2%us, 11.3%sy, 0.0%ni, 13.1%id, 0.0%wa, 0.3%hi, 59.1%si, 0.0%st
Cpu1 : 2.1%us, 2.4%sy, 0.0%ni, 94.6%id, 0.0%wa, 0.0%hi, 0.3%si, 0.6%st
Cpu2 : 3.5%us, 3.2%sy, 0.0%ni, 90.6%id, 0.0%wa, 0.0%hi, 1.8%si, 0.9%st
Cpu3 : 1.2%us, 1.8%sy, 0.3%ni, 96.0%id, 0.0%wa, 0.0%hi, 0.3%si, 0.3%st
Mem: 14403128k total, 14267112k used, 136016k free, 22252k buffers
Swap: 1048568k total, 1224k used, 1047344k free, 571908k cached
PID USER PR NI VIRT RES SHR S %CPU %MEM TIME+ P COMMAND
2889 root RT 0 12.0g 124m 104m S 154.7 0.9 3:58.44 0 tmm.0 -T 4 --tmid 0 --npus 4 --platform
Z100 -m -s 12088
3054 root RT 0 12.0g 124m 104m S 8.8 0.9 2:48.53 3 tmm.0 -T 4 --tmid 0 --npus 4 --platform
Z100 -m -s 12088
3053 root RT 0 12.0g 124m 104m S 8.5 0.9 2:12.29 2 tmm.0 -T 4 --tmid 0 --npus 4 --platform
Z100 -m -s 12088
3052 root RT 0 12.0g 124m 104m R 7.6 0.9 2:06.63 1 tmm.0 -T 4 --tmid 0 --npus 4 --platform
Z100 -m -s 12088
Technical tips for load generation 1 mTCP thread pre-allocate memory pools for TCP send and receive buffer from configured maximum number of buffers.
when the load generator has limited memory, it is recommended to reduce the size of TCP send and receive buffer and number of buffers in application configuration file.
also configure the BIGIP DUT to respond small packet size ( < 64 bytes) because large response
payload size would trigger mTCP payload merge length error
for example: setting TCP receive and send buffer in epwget.conf
# Receive buffer size of sockets
rcvbuf = 1024
# Send buffer size of sockets
sndbuf = 1024
mTCP pre-allocate memory (mtcp/src/core.c)
static mtcp_manager_t
InitializeMTCPManager(struct mtcp_thread_context* ctx)
{
mtcp->flow_pool = MPCreate(sizeof(tcp_stream),
sizeof(tcp_stream) * CONFIG.max_concurrency,
IS_HUGEPAGE);
if (!mtcp->flow_pool) {
CTRACE_ERROR("Failed to allocate tcp flow pool.\n");
return NULL;
}
mtcp->rv_pool = MPCreate(sizeof(struct tcp_recv_vars),
sizeof(struct tcp_recv_vars) * CONFIG.max_concurrency, IS_HUGEPAGE);
if (!mtcp->rv_pool) {
CTRACE_ERROR("Failed to allocate tcp recv variable pool.\n"); return NULL;
}
mtcp->sv_pool = MPCreate(sizeof(struct tcp_send_vars),
sizeof(struct tcp_send_vars) * CONFIG.max_concurrency, IS_HUGEPAGE);
if (!mtcp->sv_pool) {
CTRACE_ERROR("Failed to allocate tcp send variable pool.\n");
return NULL;
}
mtcp->rbm_snd = SBManagerCreate(CONFIG.sndbuf_size, CONFIG.max_num_buffers);
if (!mtcp->rbm_snd) {
CTRACE_ERROR("Failed to create send ring buffer.\n");
return NULL;
}
mtcp->rbm_rcv = RBManagerCreate(CONFIG.rcvbuf_size, CONFIG.max_num_buffers);
if (!mtcp->rbm_rcv) {
CTRACE_ERROR("Failed to create recv ring buffer.\n");
return NULL;
}
References
http://highscalability.com/blog/2013/5/13/the-secret-to-10-million-concurrent-connections-the-kernel-i.html
http://www.dpdk.org/
http://www.ndsl.kaist.edu/~kyoungsoo/papers/mtcp.pdf
https://github.com/eunyoung14/mtcp
https://github.com/emmericp/MoonGen
http://git.es.f5net.com/index.cgi/codeshare/tree/vli/mtcp (git log --author="Vincent Li“)
http://git.es.f5net.com/index.cgi/codeshare/tree/vli/MoonGen
No comments:
Post a Comment
